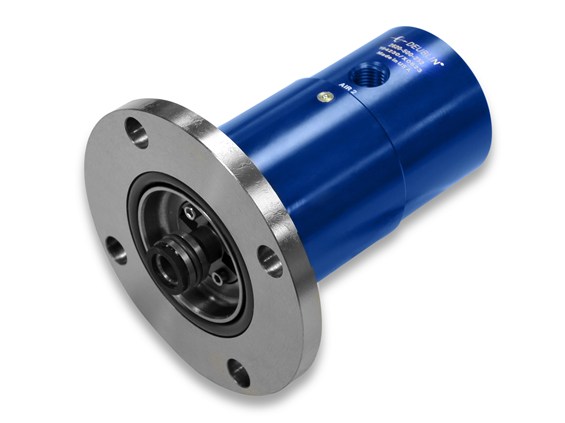

Deublin DEU-PLEX 2620双通道高速接头 Air-Hydraulic-Coolant双通道全介质应用旋转接头
deublin 2620 是一种可靠型双路接头，专门设计用于要求两种不同介质通道的高速旋转机床部件。由于接头采用的是冷运行，因此极好地适用于机床主轴，并推荐应用于板式夹头及旋转气缸。亦可提供应用于变节距的鼓风机应用的特殊型号。该接头的原设计只能在两个通道中用相同的介质，决不可用于不同的介质，因为当密封磨损后会产生通道相互泄漏。可按用户要求提供用于液压的 E.L.S. （延长寿命型）密封。
当采用多路接头时，一次应仅对一个通道加压。另一通道则应开放排出口，以防止产生通道交叉泄漏。
选型资料下载 PDF
| |

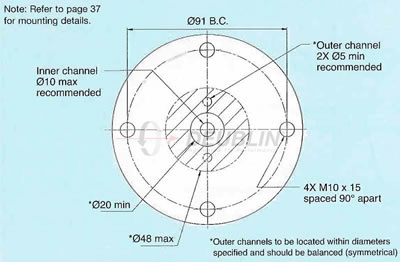

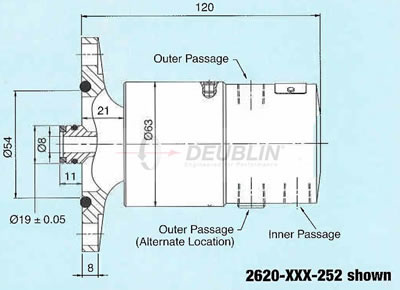

订货型号 |
订货型号 |
订货型号 |
内通道 |
内通道 |
内通道 |
外通道 |
外通道 |
外通道 |
|
| |
∮108mm
法兰转体
NPT连接 |
∮88 mm
法兰转体
G连接 |
∮81 mm
法兰转体
NPT连接 |
供给管
路连接
NPT/G |
介质 |
最高
压力 |
供给管
路连接
NPT/G |
介质 |
最高
压力 |
润滑方式 |
|
标准 |
2620-040-252 |
2620-042-940 |
2620-040-157 |
1/4″ |
液压油 |
140bar |
1/4″ |
液压油 |
70bar |
|
|
高压 |
2620-140-252 |
2620-142-940 |
2620-140-157 |
1/4″ |
液压油 |
140bar |
1/4″ |
气体 |
6bar |
1 |
|
高压 |
2620-160-252 |
2620-162-940 |
2620-160-157 |
1/4″ |
液压油 |
140bar |
1/4″ |
气体 |
10bar |
1 |
|
高压 |
2620-240-252 |
2620-242-940 |
2620-240-157 |
1/4″ |
冷却液 |
140bar |
1/4″ |
气体 |
6bar |
1 |
|
高压 |
2620-260-252 |
2620-262-940 |
2620-260-157 |
1/4″ |
冷却液 |
140bar |
1/4″ |
气体 |
10bar |
1 |
|
超高压 |
2620-340-252 |
2620-342-940 |
2620-340-157 |
1/4″ |
气体 |
6bar |
1/4″ |
液压油 |
70bar |
2 |
|
超高压 |
2620-360-252 |
2620-362-940 |
2620-360-157 |
1/4″ |
气体 |
10bar |
1/4″ |
液压油 |
70bar |
2 |
|
超高压 |
2620-440-252 |
2620-442-940 |
2620-440-157 |
1/4″ |
气体 |
6bar |
1/4″ |
冷却液 |
70bar |
2 |
|
超高压 |
2620-460-252 |
2620-462-940 |
2620-460-157 |
1/4″ |
气体 |
10bar |
1/4″ |
冷却液 |
70bar |
2 |
润滑方式：
1：可以通过油杯对气体密封润滑或采用油气
2：气体密封不要求外部润滑
2620系列双通道全介质应用旋转接头：
标准：2620-040-252 2620-042-940 2620-040-157
高压：2620-140-252 2620-142-940 2620-140-157 2620-160-252 2620-162-940 2620-160-157 2620-240-252 2620-242-940 2620-240-157 2620-260-252 2620-262-940 2620-260-157
超高压：2620-340-252 2620-342-940 2620-340-157 2620-360-252 2620-362-940 2620-360-157 2620-440-252 2620-442-940 2620-440-157 2620-460-252 2620-462-940 2620-460-157
|

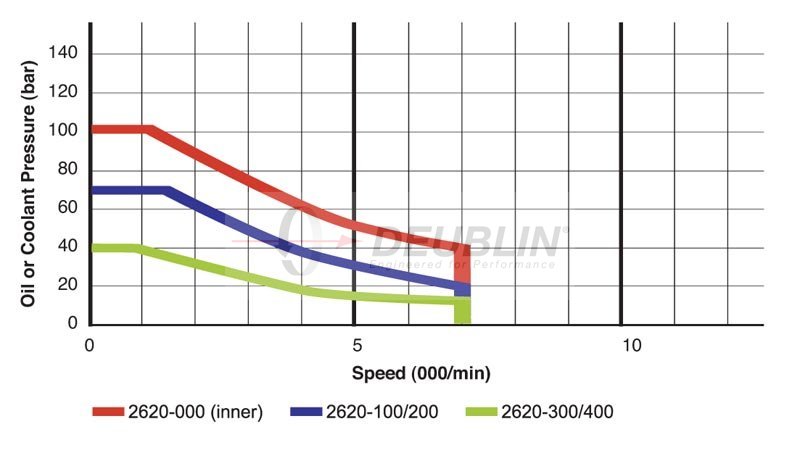

Item # |
 |
Inner Passage Media |
|
Inner Passage Supply Connection (G/NPT) |
|
Inner Passage Max. Pressure |
|
Outer Passage Media |
|
Outer Passage Supply Connection (G/NPT) |
|
|
|
Flanged Rotor Dia. |
|
|
|
|
2620-000-252 |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
100 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-100-252 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-120-252 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-200-252 |
|
Coolant |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-220-252 |
|
Coolant |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-300-252 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-320-252 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-400-252 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Coolant |
|
1/4, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-420-252 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Coolant |
|
1/4, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-500-252 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-520-252 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
108 mm |
|
|
|
|
2620-002-940 |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
100 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-102-940 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-122-940 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-202-940 |
|
Coolant |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-222-940 |
|
Coolant |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-302-940 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-322-940 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-402-940 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Coolant |
|
1/4, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-422-940 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Coolant |
|
1/4, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-502-940 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-522-940 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
88 mm |
|
|
|
|
2620-000-157 |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
100 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
|
|
81 mm |
|
|
|
|
2620-100-157 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
81 mm |
|
|
|
|
2620-120-157 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
|
|
81 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
2620-200-157 |
|
Coolant |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
81 mm |
|
|
|
|
2620-220-157 |
|
Coolant |
|
3/8, 1/4 in |
|
70 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
81 mm |
|
|
|
|
2620-300-157 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
40 bar |
|
81 mm |
|
|
|
|
2620-320-157 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
40 bar |
|
81 mm |
|
|
|
|
2620-400-157 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Coolant |
|
1/4, 1/4 in |
|
40 bar |
|
81 mm |
|
|
|
|
2620-420-157 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Coolant |
|
1/4, 1/4 in |
|
40 bar |
|
81 mm |
|
|
|
|
2620-500-157 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
81 mm |
|
|
|
|
2620-520-157 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
81 mm |
|
|
|
|
2620-040-252 |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
140 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
108 mm |
|
|
|
|
2620-140-252 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
108 mm |
|
|
|
|
2620-160-252 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
108 mm |
|
|
|
|
2620-240-252 |
|
Coolant |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
108 mm |
|
|
|
|
2620-260-252 |
|
Coolant |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
108 mm |
|
|
|
|
2620-340-252 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
108 mm |
|
|
|
|
2620-360-252 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
108 mm |
|
|
|
|
2620-440-252 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Coolant |
|
1/4, 1/4 in |
|
70 bar |
|
108 mm |
|
|
|
|
2620-460-252 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Coolant |
|
1/4, 1/4 in |
|
70 bar |
|
108 mm |
|
|
|
|
2620-042-940 |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
140 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
88 mm |
|
|
|
|
2620-142-940 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
88 mm |
|
|
|
|
2620-162-940 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
88 mm |
|
|
|
|
2620-242-940 |
|
Coolant |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
88 mm |
|
|
|
|
2620-262-940 |
|
Coolant |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
88 mm |
|
|
|
|
2620-342-940 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
88 mm |
|
|
|
|
2620-362-940 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
88 mm |
|
|
|
|
2620-442-940 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Coolant |
|
1/4, 1/4 in |
|
70 bar |
|
88 mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
2620-462-940 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Coolant |
|
1/4, 1/4 in |
|
70 bar |
|
88 mm |
|
|
|
|
2620-040-157 |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
140 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
81 mm |
|
|
|
|
2620-140-157 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
81 mm |
|
|
|
|
2620-160-157 |
|
Hydraulic Oil |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
81 mm |
|
|
|
|
2620-240-157 |
|
Coolant |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
6 bar |
|
81 mm |
|
|
|
|
2620-260-157 |
|
Coolant |
|
3/8, 1/4 in |
|
140 bar |
|
Air |
|
1/8, 1/4 in |
|
10 bar |
|
81 mm |
|
|
|
|
2620-340-157 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
81 mm |
|
|
|
|
2620-360-157 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Hydraulic Oil |
|
1/4, 1/4 in |
|
70 bar |
|
81 mm |
|
|
|
|
2620-440-157 |
|
Air |
|
1/4, 1/4 in |
|
6 bar |
|
Coolant |
|
1/4, 1/4 in |
|
70 bar |
|
81 mm |
|
|
|
|
2620-460-157 |
|
Air |
|
1/4, 1/4 in |
|
10 bar |
|
Coolant |
|
1/4, 1/4 in |
|
70 bar |
|
81 mm |
|
|
|
