Barco Type Super G Rotary Steam Joint旋转接头
Super G Rotary Steam Joints for rotary syphons sizes 1-1/4", 1-1/2" and 2"
Super G Special Design Features
>Antimony seals and bearings are standard
>Two widely spaced bearings for stability, greater syphon support and longer wear
>Available in quick-release flange assembly or threaded sleeve
>External seal wear indicator for preventive maintenance
>All wear surfaces are treated for improved corrosion resistance
>Directly interchangeable with competitive designs
>Seal under compression design can better handle pressure surges and promotes longer life
Download PDF Tech Sheet (259 KB)
Use
Paper Machine Dryers
Sizes
1-1/4", 1-1/2", 2"
Temp
+406°F (208°C)
Pressure Rating
250 psi (17.5 Kg/cm2)

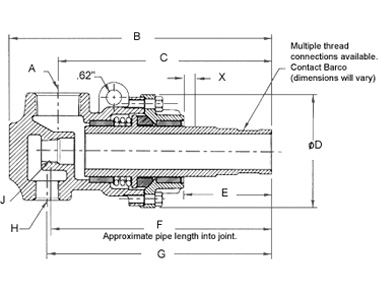

General Info
Joint
Size |
Super G
Part Number |
A Thread
NPT |
B
Syphon |
C |
φD |
E |
F
Syphon |
G |
H Thread
NPT |
J Thread
NPT |
X |
| 1-1/4" |
BC-55000-20-62 |
1-1/4" |
10.45"
(265) |
8.54"
(217) |
4.38"
(111) |
3.48"
(88) |
9.00"
(229) |
8.85"
(225) |
3/4" |
1/2" |
.34"
(8.6) |
| 1-1/2" |
BC-55000-24-62 |
1-1/2" |
10.67"
(276) |
8.87"
(225) |
4.75"
(121) |
3.63"
(92) |
9.35"
(237) |
9.31"
(236) |
3/4" |
3/4" |
.34"
(8.6) |
| 2" |
BC-55000-32-62 |
2" |
12.02"
(305) |
9.46"
(240) |
6.00"
(152) |
3.20"
(81) |
10.01"
(256) |
10.08"
(256) |
1-1/4" |
3/4" |
.41"
(10) |

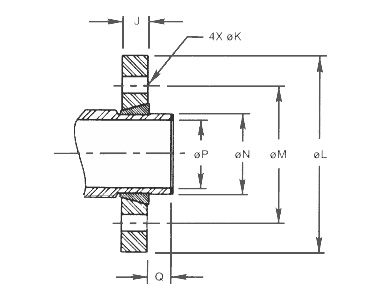

| Joint Size |
Part Number* |
J |
φK |
φL |
φM |
φN |
φP |
Q |
| 1-1/4" |
10-64034-43 |
.62"
(16) |
.56"
(14) |
5.50"
(140) |
3.50"
(89) |
1.620" - 1.622"
(41.15 - 41.20) |
1.25"
(32) |
.500"
(13) |
| 1-1/2" |
10-64035-43 |
.69"
(17) |
.56"
(14) |
5.50"
(140) |
3.58"
(98) |
1.870" - 1.872"
(47.50 - 47.55) |
1.50"
(38) |
.500"
(13) |
| 2" |
10-64036-43 |
.75"
(19) |
.56"
(14) |
6.81"
(173) |
4.75"
(121) |
2.318" - 2.320"
(58.88 - 58.93) |
1.88"
(48) |
.625"
(16) |
| 2-1/2" |
10-64037-43 |
.88"
(22) |
.56"
(14) |
6.75"
(171) |
4.75"
(121) |
2.836" - 2.838"
(72.03 - 72.08) |
2.38"
(60) |
.748"
(19) |
| 3" |
10-64038-43 |
.94"
(24) |
.69"
(18) |
8.00"
(203) |
6.75"
(171) |
3.428" - 3.430"
(87.07 - 87.12) |
2.88"
(73) |
.878"
(22) |
*Kit consists of split wedges, flange and gasket.
Special flanges available on request, |
1-1/4" BC-55000-20-62 1-1/4" 10.45"
(265) 8.54"
(217) 4.38"
(111) 3.48"
(88) 9.00"
(229) 8.85"
(225) 3/4" 1/2" .34"
(8.6)
1-1/2" BC-55000-24-62 1-1/2" 10.67"
(276) 8.87"
(225) 4.75"
(121) 3.63"
(92) 9.35"
(237) 9.31"
(236) 3/4" 3/4" .34"
(8.6)
2" BC-55000-32-62 2" 12.02"
(305) 9.46"
(240) 6.00"
(152) 3.20"
(81) 10.01"
(256) 10.08"
(256) 1-1/4" 3/4" .41"
(10)
Joint Size
Part Number*
1-1/4" 10-64034-43 .62"
(16) .56"
(14) 5.50"
(140) 3.50"
(89) 1.620" - 1.622"
(41.15 - 41.20) 1.25"
(32) .500"
(13)
1-1/2" 10-64035-43 .69"
(17) .56"
(14) 5.50"
(140) 3.58"
(98) 1.870" - 1.872"
(47.50 - 47.55) 1.50"
(38) .500"
(13)
2" 10-64036-43 .75"
(19) .56"
(14) 6.81"
(173) 4.75"
(121) 2.318" - 2.320"
(58.88 - 58.93) 1.88"
(48) .625"
(16)
2-1/2" 10-64037-43 .88"
(22) .56"
(14) 6.75"
(171) 4.75"
(121) 2.836" - 2.838"
(72.03 - 72.08) 2.38"
(60) .748"
(19)
3" 10-64038-43 .94"
(24) .69"
(18) 8.00"
(203) 6.75"
(171) 3.428" - 3.430"
(87.07 - 87.12) 2.88"
(73) .878"
(22)
*Kit consists of split wedges, flange and gasket.
|
