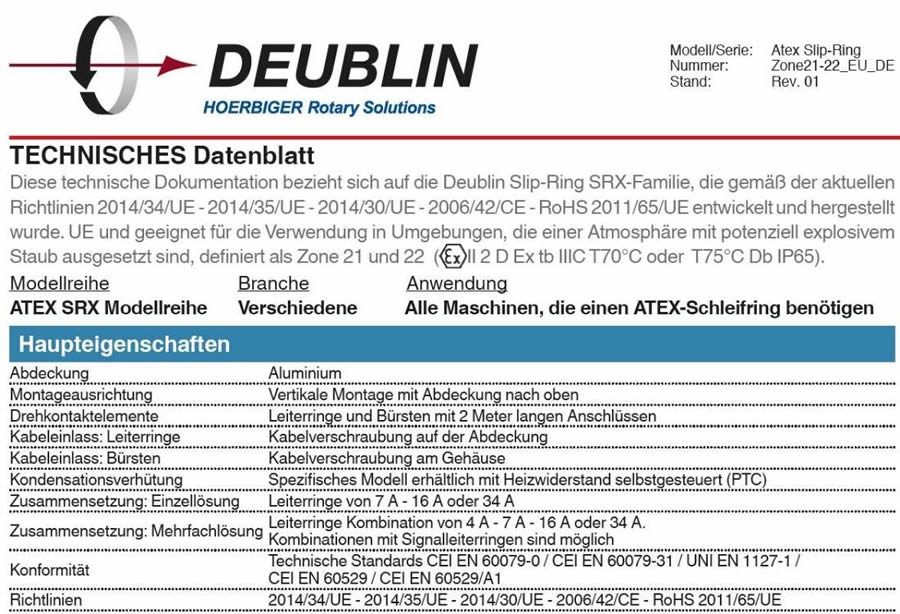

Deublin Slip-Ring SRX

SRX

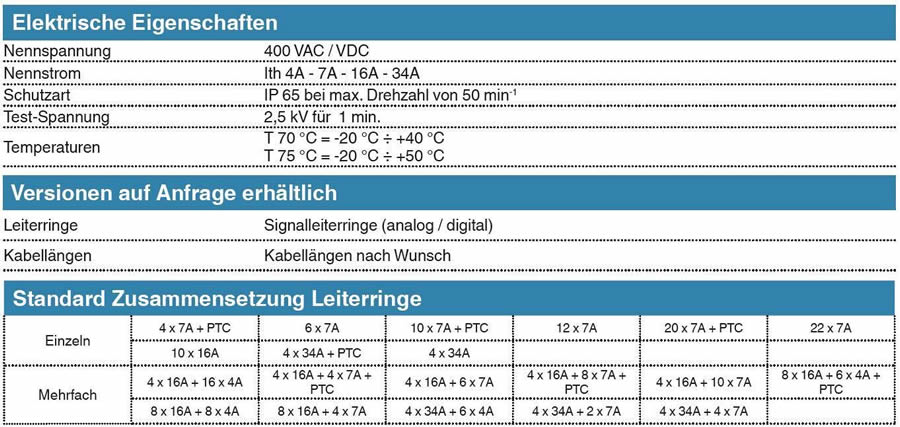

Electrical Channels		see datasheet
nominal Current		Ith 4A - 7A - 16A - 34A
nominal Voltage		400 VAC / VDC
Material	Housing	Anodized Aluminium
Rotor	Anodized Aluminium
Cover	Anodized Aluminium
Wiring		depending by cond. rings composition
Lead length		cable lengths dimensions according requests
Protection class		IP 65 at max. rotational speed of 50 rpm
Max. rot. speed		50 RPM
Mounting position		Vertical mounting with cover upward
Work. Temp.		T 70°C = -20°C ÷ +40°C T 75°C = -20°C ÷ +50°C
Rotation direction		Bi-Directional
Conformities		CEI EN 60079-0 / CEI EN 60079-31 / UNI EN 1127-1 / CEI EN 60529 / CEI EN 60529/A1
Directives		2014/34/UE - 2014/35/UE - 2014/30/UE - 2006/42/CE - RoHS 2011/65/UE

Ex II 2 D Ex tb IIIC T70°C oder T75°C Db IP65
