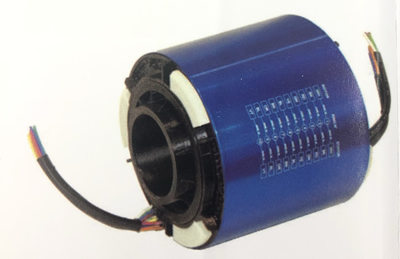

DEUBLIN Electrical Slip Rings SRT-50电滑环


SRT-50
描述:

SRT-50是一种可靠、高性价比、通过实践验证的产品,在许多应用中表现优异。因其独特设计,具有很强的通用性。该滑环能有效地传递信号和动力电源,并配有中心孔,为任何需要通过电缆,轴等应用提供简洁的解决方案。


型号系列 SRT-50
行业 多用途
应用 包装,自动化,转台





电气特性

电气通道数

可到 54



最高电压

电源: 600VAC/DC

信号: 30VDC

最大电流

电源: 10A

信号: 5A

导线规格

电源: 1mm2

信号: 0.34mm2

通信速率

可到 100Mbps

导电环

镀银 / 金铜合金

电刷

单丝或多丝合金纤刷

定子连接

引出线

转子连接

引出线



机械特性

最高转速

250RPM

旋转方向

双向

防护等级

IP51 (标准) -IP68 (最高)

安装方向

立式或卧式

工作温度

-20 ° C 到 +80 ° C

存储温度

-40 ° C 到 +90 ° C

壳体材料

玻纤增强尼龙 66

转子材料

玻纤增强尼龙 66

罩盖材料



版本



SRT-50( 标准 )

3m 引出线

可选项

引出线末端插头

引出线缆有或无插头

喷漆罩盖

引出线长度

定制防转





New versatile slip-ring series with focus on packaging and automation
全新多功能滑环系列,专注于包装和自动化

通过我们的SRT系列,我们补充了DEUBLIN滑环的产品系列,并为包装、贴标和灌装机以及旋转表应用提供了更多选项。With our SRT series we complement the product family of DEUBLIN slip-rings and offer further options for packaging, labeling and filling machines as well as for applications with rotary tables.

SRT 系列是一款可靠、经济高效且久经考验的产品,可为众多应用提供卓越的性能。The SRT series is a reliable, cost-effective and proven product that offers excellent performance for numerous applications.

由于其独特的设计,滑环用途广泛:根据版本,多达 36 个通道或多达 54 个通道可用,其银色或金色触点技术可有效传输电源和信号。10A 电流和电压 600V 交流/直流电源以及 5A 和 30V 直流信号均无问题。此外,单丝刷可确保高达 100 Mbit / s 的可靠数据传输。Due to its unique design, the slip-ring is extremely versatile: depending on the version, up to 36 or up to 54 channels are available, their silver or gold contact technology transmits power and signal effectively. Currents of 10A and voltage 600V AC / DC for power as well as 5A and 30V DC for signal are possible without problems. In addition, monofilament brushes ensure reliable data transmission up to 100 Mbit / s.

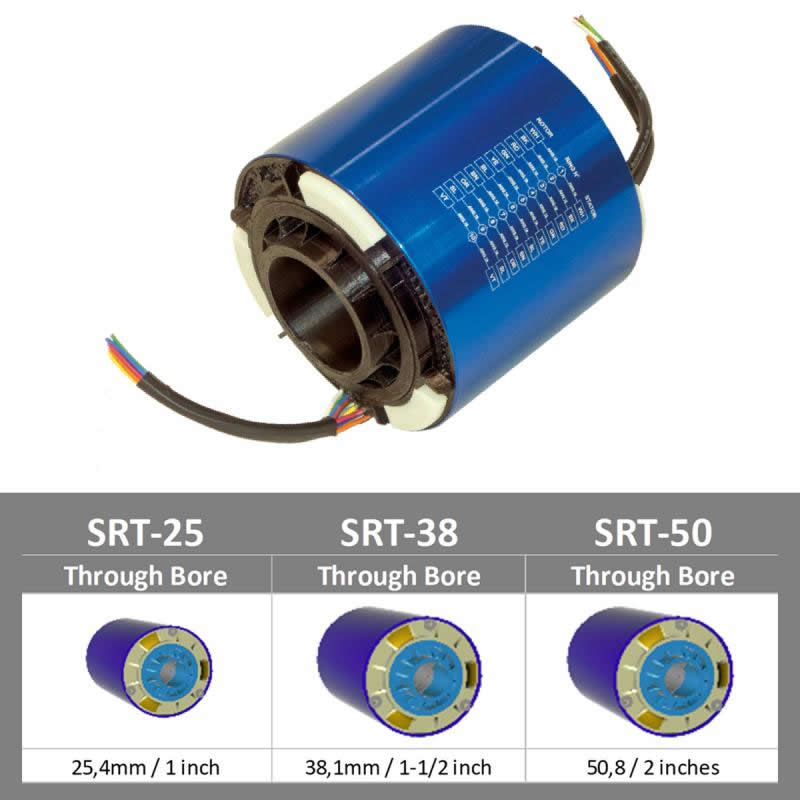

由于采用模块化设计,通孔有 25、38 或 50 mm 可供选择;插头、电线长度或防旋转设备可根据客户要求订购。The through bores are available in 25, 38 or 50 mm thanks to the modular design; plugs, wire lengths or anti-rotation devices can be ordered according to customer requirements.

除了纯粹的电气任务外,如果其他介质(如冷却水或液压系统)的传输,SRT 滑环还可以与经典旋转接头很好地结合。In addition to the purely electrical tasks, SRT slip rings can be very well combined with classic rotating unions if other media such as cooling water or hydraulics should be transferred.

Be More: Flexible – with solutions by DEUBLIN!
更多:灵活 – 提供杜布林的解决方案!
