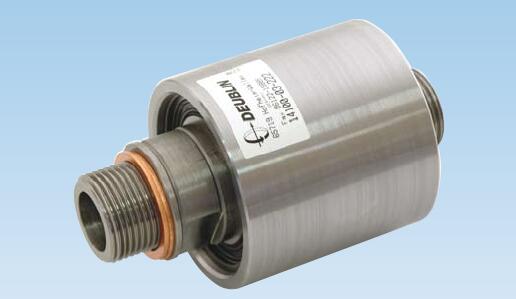

DEUBLIN Rotating Union 14000 Series for Air and Hydraulic Oil Service,DN 10 - 50
14000系列气体和液压油介质应用旋转接头
- monoflow design
- self-supported rotating union or in-the-shaft mounted
- balanced mechanical seal
Carbon Graphite/Ceramic - for air service;
Tungsten Carbide/Ceramic - for hydraulic service
- axial or radial housing connection by means of elbow
- lubrication storage within the seal cavity for air service
- heavy-duty design
- steel housing
- stainless steel rotor
- full-media flow
For further information please contact DEUBLIN or your local representative.

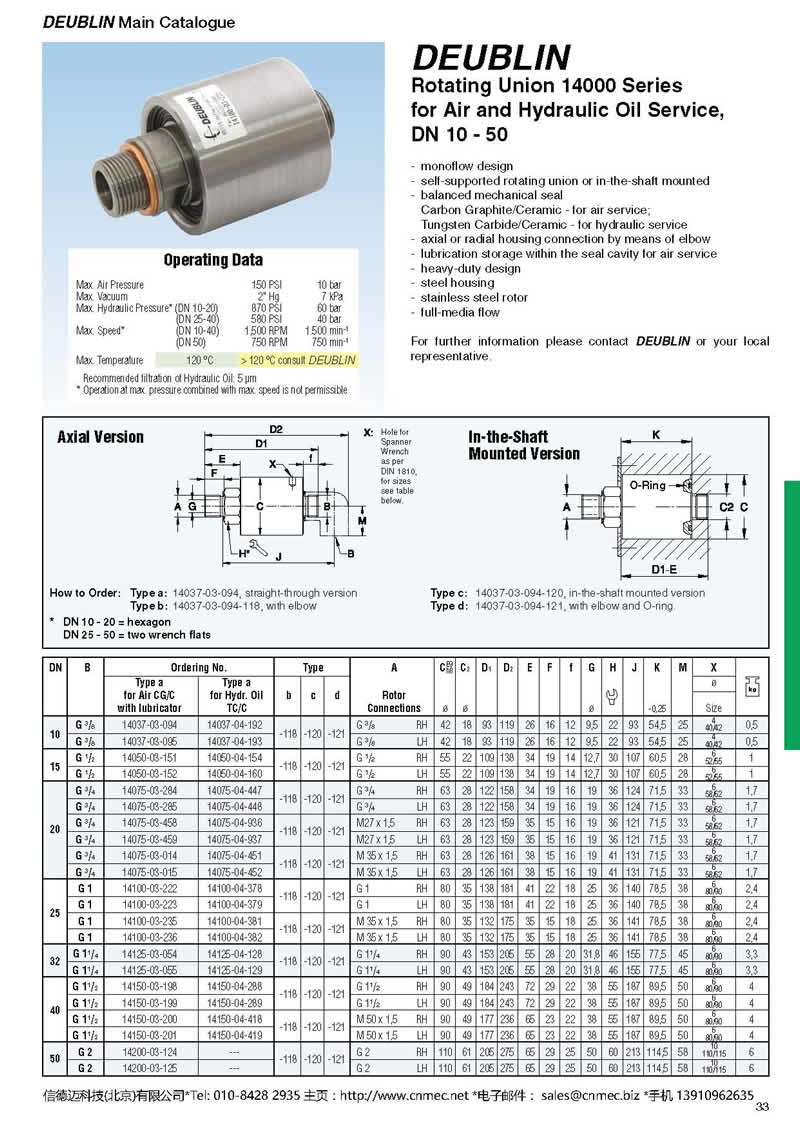

DEUBLIN Rotating Union 14000 Series for Air and Hydraulic Oil Service,DN 10 - 50
14000系列气体和液压油介质应用旋转接头
- 技术参数Operating Data
Max. Air Pressure：150 PSI 10 bar
Max. Vacuum：2" Hg 7 kPa
Max. Hydraulic Pressure* (DN 10-20)：870 PSI 60 bar
(DN 25-40) ：580 PSI 40 bar
Max. Speed* (DN 10-40) ： 1,500 RPM 1.500 min-1
(DN 50)：750 RPM 750 min-1
Max. Temperature 120 °C > 120 °C consult DEUBLIN
Recommended filtration of Hydraulic Oil: 5 μm
* Operation at max. pressure combined with max. speed is not permissible
- 订货型号
| DN |
B |
Ordering No.（Type a for Air CG/C with lubricator） |
Ordering No.（Type a for Hydr.Oil TC/C） |
Type |
|
|
A（Rotor Connections） |
C<sub>H?</sub> |
|
|
|
|
b |
c |
d |
|
|
| 10 |
G 3/8 |
14037-03-094 |
14037-04-192 |
-118 |
-120 |
-121 |
G 3/8 |
RH |
|
| 10 |
G 3/8 |
14037-03-095 |
14037-04-193 |
-118 |
-120 |
-121 |
G 3/8 |
LH |
|
| 15 |
G 1/2 |
14050-03-151 |
14050-04-154 |
-118 |
-120 |
-121 |
G 1/2 |
RH |
|
| 15 |
G 1/2 |
14050-03-152 |
14050-04-160 |
-118 |
-120 |
-121 |
G 1/2 |
LH |
|
| 20 |
G 3/4 |
14075-03-284 |
14075-04-447 |
-118 |
-120 |
-121 |
G 3/4 |
RH |
|
| 20 |
G 3/4 |
14075-03-285 |
14075-04-448 |
-118 |
-120 |
-121 |
G 3/4 |
LH |
|
| 20 |
G 3/4 |
14075-03-458 |
14075-04-936 |
-118 |
-120 |
-121 |
M27×1,5 |
RH |
|
| 20 |
G 3/4 |
14075-03-459 |
14075-04-937 |
-118 |
-120 |
-121 |
M27×1,5 |
LH |
|
| 20 |
G 3/4 |
14075-03-014 |
14075-04-451 |
-118 |
-120 |
-121 |
M35×1,5 |
RH |
|
| 20 |
G 3/4 |
14075-03-015 |
14075-04-452 |
-118 |
-120 |
-121 |
M35×1,5 |
LH |
|
| 25 |
G 1 |
14100-03-222 |
14100-04-378 |
-118 |
-120 |
-121 |
G 1 |
RH |
|
| 25 |
G 1 |
14100-03-223 |
14100-04-379 |
-118 |
-120 |
-121 |
G 1 |
LH |
|
| 25 |
G 1 |
14100-03-235 |
14100-04-381 |
-118 |
-120 |
-121 |
M35×1,5 |
RH |
|
| 25 |
G 1 |
14100-03-236 |
14100-04-382 |
-118 |
-120 |
-121 |
M35×1,5 |
LH |
|
| 32 |
G 1 1/4 |
14125-03-054 |
14125-04-128 |
-118 |
-120 |
-121 |
G 1 1/4 |
RH |
|
| 32 |
G 1 1/4 |
14125-03-055 |
14125-04-129 |
-118 |
-120 |
-121 |
G 1 1/4 |
LH |
|
| 40 |
G 1 1/2 |
14150-03-198 |
14150-04-288 |
-118 |
-120 |
-121 |
G 1 1/2 |
RH |
|
| 40 |
G 1 1/2 |
14150-03-199 |
14150-04-289 |
-118 |
-120 |
-121 |
G 1 1/2 |
LH |
|
| 40 |
G 1 1/2 |
14150-03-200 |
14150-04-418 |
-118 |
-120 |
-121 |
M50×1,5 |
RH |
|
| 40 |
G 1 1/2 |
14150-03-201 |
14150-04-419 |
-118 |
-120 |
-121 |
M50×1,5 |
LH |
|
| 50 |
G 2 |
14200-03-124 |
---- |
-118 |
-120 |
-121 |
G 2 |
RH |
|
| 50 |
G 2 |
14200-03-125 |
---- |
-118 |
-120 |
-121 |
G 2 |
LH |
|
Axial Version In-the-Shaft
Mounted Version
How to Order: Type a: 14037-03-094, straight-through version
Type b: 14037-03-094-118, with elbow
Type c: 14037-03-094-120, in-the-shaft mounted version
Type d: 14037-03-094-121, with elbow and O-ring.
DEUBLIN Ordering No.
G 3/8 14037-03-094
14037-04-192
14037-03-095
14037-04-193
14050-03-151
14050-04-154
14050-03-152
14050-04-160
14075-03-284
14075-04-447
14075-03-285
14075-04-448
14075-03-458
14075-04-936
14075-03-459
14075-04-937
14075-03-014
14075-04-451
14075-03-015
14075-04-452
14100-03-222
14100-04-378
14100-03-223
14100-04-379
14100-03-235
14100-04-381
14100-03-236
14100-04-382
14125-03-054
14125-04-128
14125-03-055
14125-04-129
14150-03-198
14150-04-288
14150-03-199
14150-04-289
14150-03-200
14150-04-418
14150-03-201
14150-04-419
14200-03-124
14200-03-125
|
|
