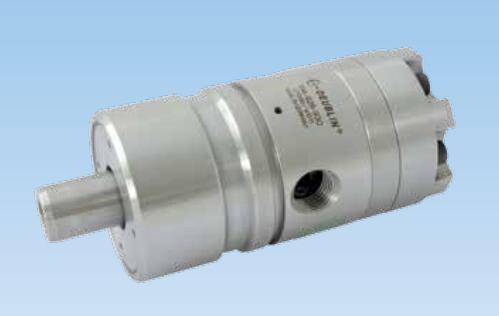

Deublin杜博林1114系列自动感应壳体安装冷却液和气体干运转应用旋接器
Deublin 1114 Series AutoSense Bore-Mounted Rotating Unions for Coolant and Air Service with Dry Running
性能特点：
- 单通道,冷却液或干气体
- 专利自动感应技术可实现根据介质在闭
- 合密封与控制泄漏之间自动切换壳体安装设计,安装简便
- 拉杆轴向行程可达19mm
- 配套SOP4级复合式滚珠轴承可保证高速平稳运转
- 采用迷宫式密封及大泄漏口保护滚珠轴承
- 全流通设计,不产生碎屑及毛刺堵塞
- 平衡式机械密封,采用碳化硅材料,即使恶劣工作条件仍能延长使用寿命
- 防腐蚀阳极氧化铝及不锈钢部件

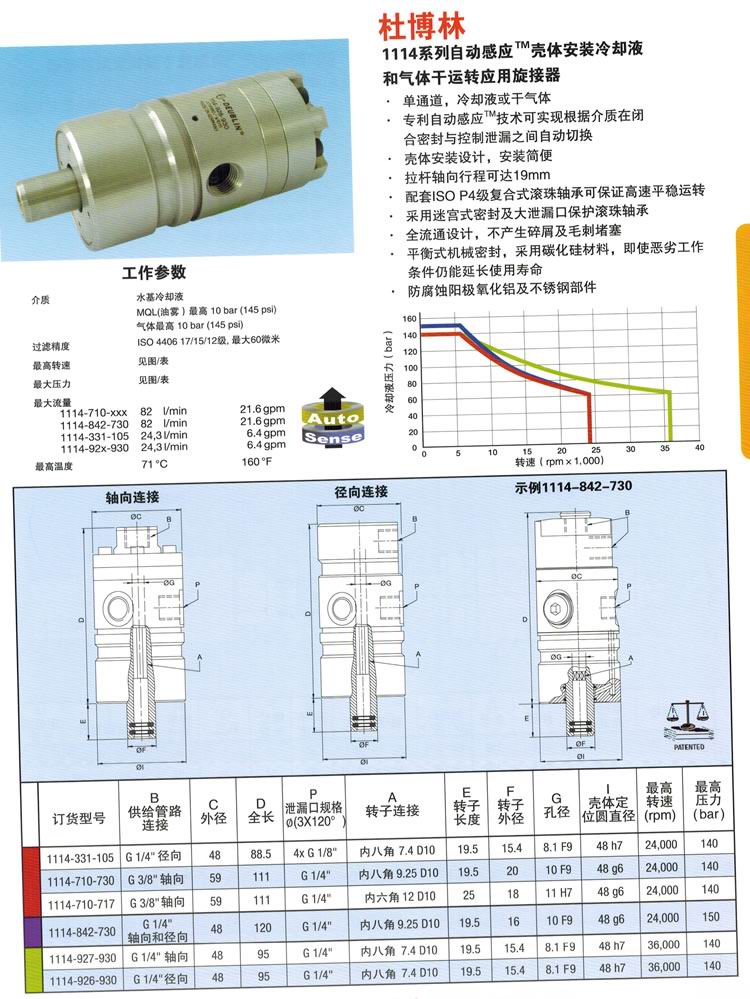

Deublin杜博林1114系列自动感应壳体安装冷却液和气体干运转应用旋接器
Deublin 1114 Series AutoSense Bore-Mounted Rotating Unions for Coolant and Air Service with Dry Running
工作参数：
介质 水基冷却液
MQL(油雾)最高10bar(145ps
气体最高10bar(145ps)
过滤精度 so440617/15/12级,最大60微米
R出
最高转速 见图表
最大压力 见图/表
最大流量
1114-710-XXX Umin 21.6 gpm
1114-842-73082min 21.6gpm Auto
6.4gpm Sense
1114-331-10524,3|/min
1114-92X-93024.3|/min 6. 4 gpm
最高温度 71°C 160°
- 订货型号
| 分类 |
Ordering Number |
B Supply Connection |
C Overall Diameter |
D Overall Length |
P Drain Size ( 3 x 120°) |
A Rotor Connection |
E Rotor Length |
F Thread Length |
G Bore Diameter |
H Across Flats |
I Pilot Diameter |
M Pilot Length |
| Standard |
1114-021-188 |
G 3/8 Axial |
53 |
131 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| Standard |
1114-020-188 |
G 3/8 Radial |
53 |
137 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| Standard |
1114-040-188 |
3/8 PT Radial |
53 |
137 |
1/4 PT |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| High Pressure |
1114-024-212 |
G 1/4 Axial |
53 |
131 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| High Pressure |
1114-044-212 |
1/4 PT Axial |
53 |
131 |
1/4 PT |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| High Pressure |
1114-023-212 |
G 1/4 Radial |
53 |
137 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Housing Length |
P Drain Size ( 3 x 120°) |
A Rotor Connection |
E Rotor Length |
F Rotor Overall Diameter |
G Bore Diameter |
I Pilot Diameter |
Max. Speed (rpm) |
Max. Pressure (bar) |
| 1114-331-105 |
G 1/4 Radial |
48 |
88.5 |
4x G 1/8 |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
24,000 |
140 |
| 1114-710-730 |
G 3/8 Axial |
59 |
111 |
G 1/4 |
Octagon 9.25 D10 |
19.5 |
20 |
10 F9 |
48 g6 |
24,000 |
140 |
| 1114-710-717 |
G 3/8 Axial |
59 |
111 |
G 1/4 |
Hexagon 12 D10 |
25 |
18 |
11 H7 |
48 g6 |
24,000 |
140 |
| 1114-842-730 |
G 1/4 Axial & Radial |
48 |
120 |
G 1/4 |
Octagon 9.25 D10 |
19.5 |
16 |
10 F9 |
48 g6 |
24,000 |
150 |
| 1114-927-930 |
G 1/4 Axial |
48 |
95 |
G 1/4 |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
36,000 |
140 |
| 1114-926-930 |
G 1/4 Radial |
48 |
95 |
G 1/4 |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
36,000 |
140 |
订货型号|供给管路 连接 外径全长
1114-331-105 |G1/4"径向48|88.5
1114-710-730 G3/8"轴向59 111
1114-710-717 G3/8"轴向59|11
G1/44 120
轴向和径向/48
1114-842-730
1114-927-930 G1/4"轴向48 95
1114-926-930 G1/4“径向48
|
|
