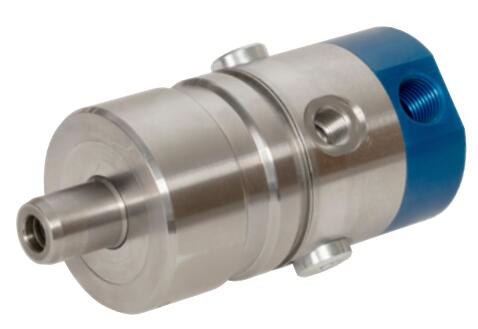

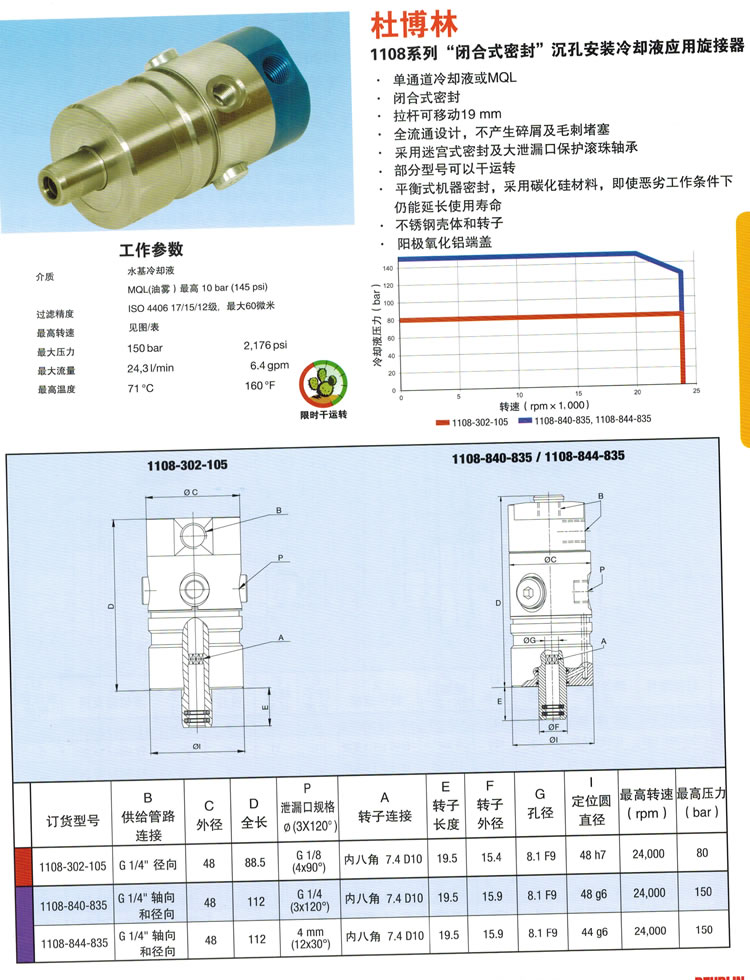

Deublin杜博林1108系列“闭合式密封”沉孔安装冷却液应用旋接接头
性能特点：
- 单通道冷却液或MQL
- 闭合式密封
- 拉杆可移动19mm
- 全流通设计,不产生碎屑及毛刺堵塞
- 采用迷宫式密封及大泄漏口保护滚珠轴承部分型号可以干运转
- 平衡式机器密封,采用碳化硅材料,即使恶劣工作条件下仍能延长使用寿命
- 不锈钢壳体和转子
- 阳极氧化铝端盖
Deublin杜博林1108系列“闭合式密封”沉孔安装冷却液应用旋接接头
工作参数：
介质 水基冷却液
MQL(油雾)最高10bar(145psi)
过滤精度 sO440617/15/12级,最大60微米
最高转速 见图/表
最大压力 150 bar 2,176psi
最大流量 24,3|min 6. 4 gpm
最高温度 71°c
限时干运转
- 订货型号
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Overall Length |
P Vent Size ( 3 x 120°) |
A Rotor Connection |
E Rotor Length |
F Thread Length |
G Bore Diameter |
H Across Flats |
I Pilot Diameter |
M Pilot Length |
| 1108-002-153 |
3/8 NPT Axial |
44 |
132 |
9 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-011-153 |
G 3/8 Radial |
44 |
135 |
9 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-034-212 |
G 1/4 Axial |
53 |
129 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-058-212 |
G 1/4 Radial |
53 |
135 |
G 1/4 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| 1108-093-559 |
1/4 NPT Axial |
44 |
132 |
9 |
M16 x 1.5 LH |
31 |
11 |
9 |
24 |
17.993 / 17.988 |
5 |
| Ordering Number |
B Supply Connection |
C Overall Diameter |
D Housing Length |
P Vent Size () |
A Rotor Connection |
E Rotor Length |
F Rotor Overall Diameter |
G Bore Diameter |
I Pilot Diameter |
Maximum Speed (rpm) |
Max. Pressure (bar) |
| 1108-302-105 |
G 1/4 Radial |
48 |
88.5 |
G 1/8 (4x90°) |
Octagon 7.4 D10 |
19.5 |
15.4 |
8.1 F9 |
48 h7 |
24,000 |
80 |
| 1108-840-835 |
G 1/4 Axial & Radial |
48 |
112 |
G 1/4 (3x120°) |
Octagon 7.4 D10 |
19.5 |
15.9 |
8.1 F9 |
48 g6 |
24,000 |
150 |
| 1108-844-835 |
G 1/4 Axial & Radial |
48 |
112 |
4 mm (12x30°) |
Octagon 7.4 D10 |
19.5 |
15.9 |
8.1 F9 |
44 g6 |
24,000 |
150 |
订货型号 供给管路|外径全长 规连接
1108-302-105 G1/4"径向|48|88.5
1108-840-835 G1/4"轴向 48 112和径向
1108-844-835 G1/4"轴向48|112和径向
|
|
